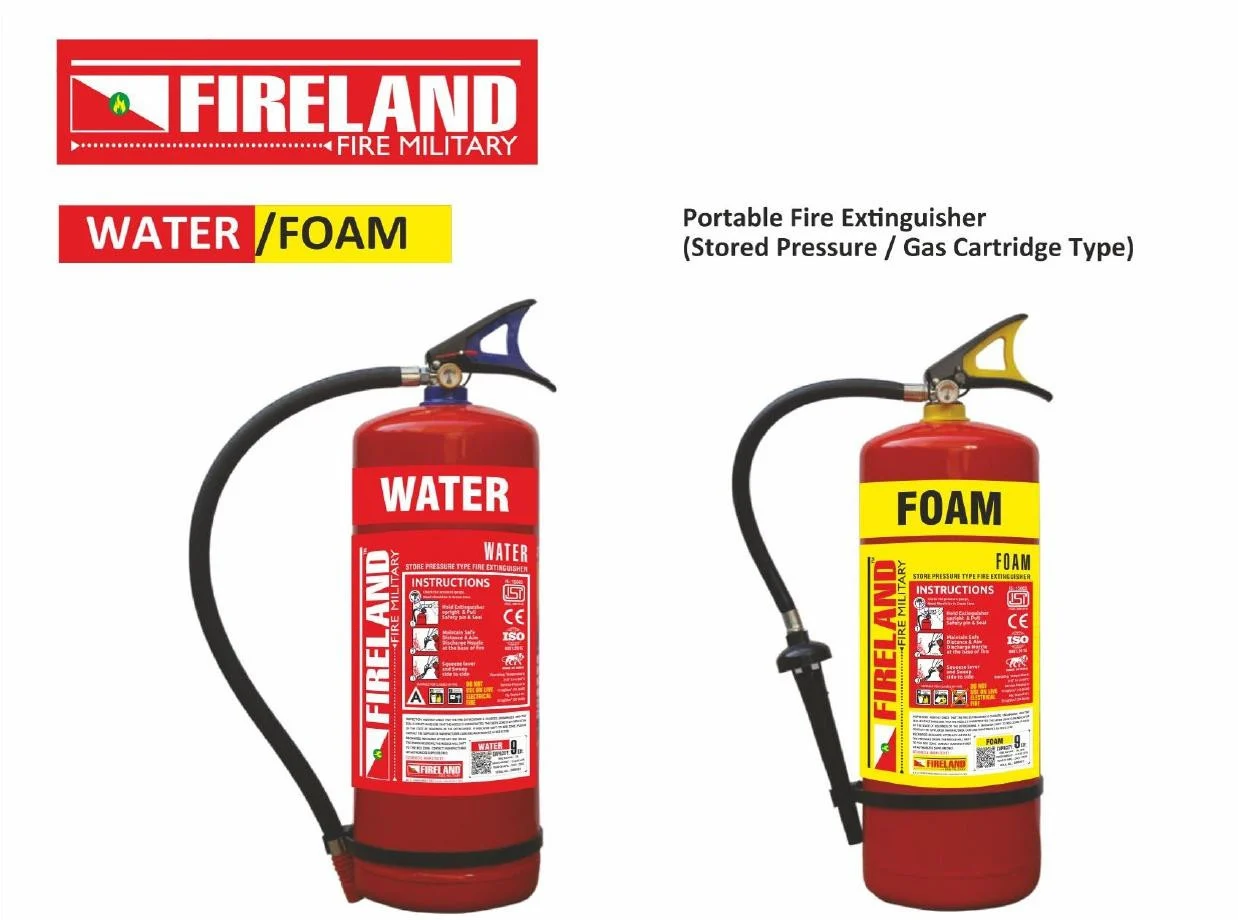

FOAM Fire Extinguisher
|
Capacity
|
FOAM 9LTR (AFFF)
|
WATER (9LTR)
|
|---|---|---|
|
MINIMUM PERIOD FOR WHICH
|
(IS-15683)
|
(IS-15683)
|
|
THROW OF JET MAINTAINED
|
35 sec
|
100 sec
|
|
AT LEAST 90% OF CONTESTS
|
60 sec
|
120 sec
|
|
RANGE OF JET
|
2 mtr.
|
3 mtr.
|
|
EMPTY.WT(APPROX)
|
5.35 kg
|
5.35 kg
|
|
FULL.WT(APPROX)
|
14.35 kg
|
14.35 kg
|
|
FIRE RATING
|
3A, 34B
|
3A
|
|
WORKING PRESSURE
|
15 KGF/CM2
|
15 KGF/CM2
|
|
HYDRO PRESSURE
|
35 KGF/CM2
|
35 KGF/CM2
|
|
BRUSTING PRESSURE
|
55 KGF/CM2
|
55 KGF/CM2
|
Here are the steps on how to use a Water & Foam Fire Extinguisher:
- Pull the pin. This will break the tamper seal and allow you to discharge the extinguisher.
- Point the nozzle at the base of the fire.
- Squeeze the trigger.
- Sweep the foam across the fire until it is extinguished.
