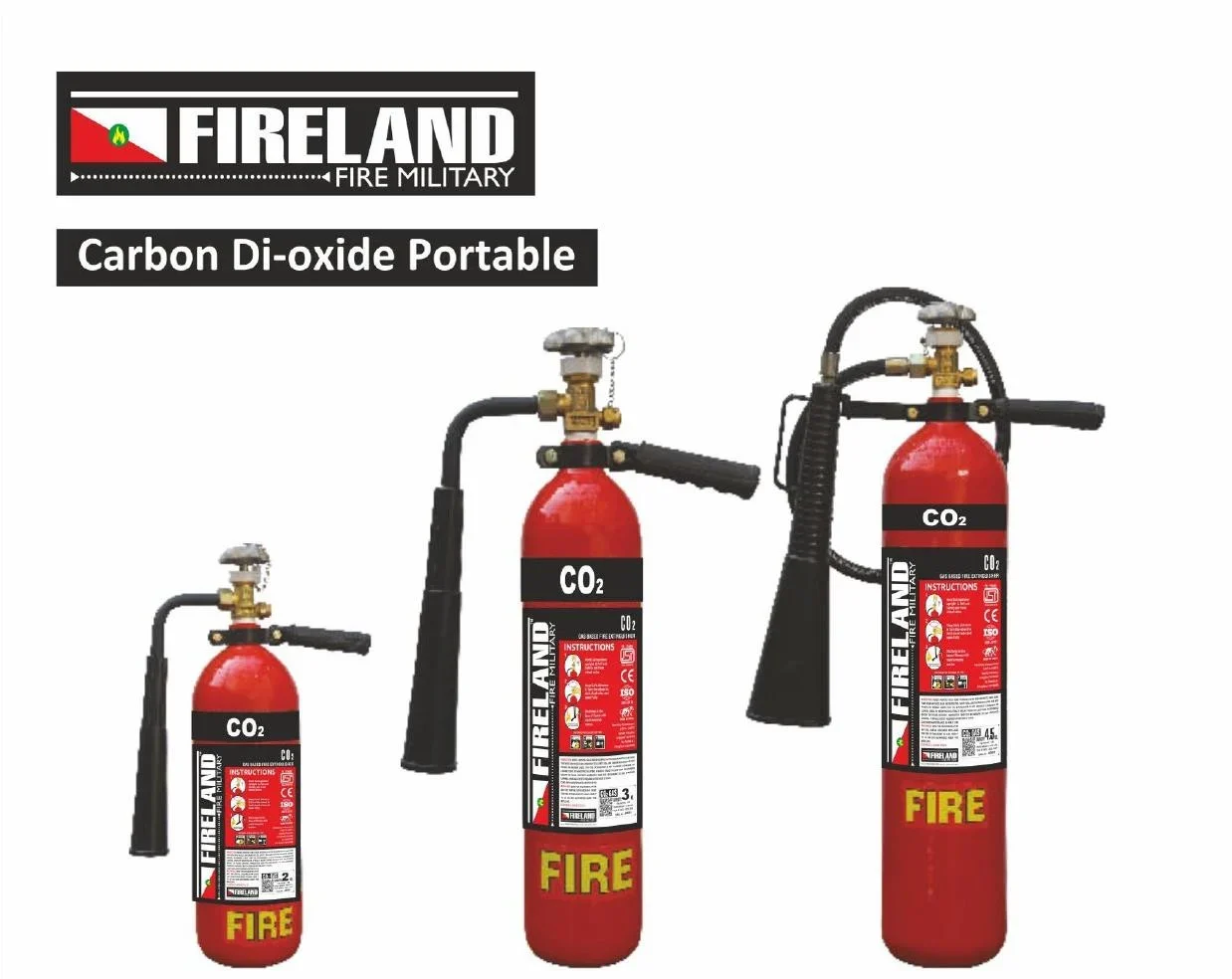

CO2 Types Fire Extinguisher (2KG To 4.5KG)
N2 Gas Types
They are effective on Class B fires (flammable liquids) and Class C fires (electrical fires).They work by smothering the fire and removing the oxygen it needs to burn.CO2 extinguishers are clean and leave no residue, but they can also displace oxygen in an enclosed space, so it is important to evacuate the area after using one.They are not effective on Class A fires (ordinary combustibles) or Class D fires (flammable metals).
|
Capacity
|
2 KG
|
3 KG
|
4.5 KG
|
|---|---|---|---|
|
MINIMUM PERIOD FOR WHICH
|
(IS-15683)
|
(IS-15683)
|
(IS-15683)
|
|
THROW OF JET MAINTAINED
|
8 Sec
|
8 Sec
|
8 Sec
|
|
AT LEAST 90% OF CONTESTS
|
10 Sec
|
16 Sec
|
20 Sec
|
|
RANGE OF JET
|
2 MTR.
|
3 MTR.
|
3 MTR.
|
|
EMPTY.WT (APPROX)
|
6.2 KG
|
9.5 KG
|
12.5 KG
|
|
FULL.WT (APPROX)
|
8.2 KG
|
12.5 KG
|
17 KG
|
|
FIRE RATING
|
13 B
|
21 B
|
21 B
|
|
WORKING PRESSURE
|
60 KGF/CM2
|
60 KGF/CM2
|
60 KGF/CM2
|
|
HYDRO PRESSURE
|
250 KGF/CM2
|
250 KGF/CM2
|
250 KGF/CM2
|
|
BRUSTING PRESSURE
|
600 KGF/CM2
|
600 KGF/CM2
|
600 KGF/CM2
|
CO2 Fire Extinguisher (6.5KG To 22.5KG)
|
Capacity
|
6.5 KG
|
9 KG
|
22.5 KG
|
|---|---|---|---|
|
TYPE
|
Wheel Type CO2
|
Wheel Type CO2
|
Wheel Type CO2
|
|
IS NO.
|
IS 16018
|
IS 16018
|
IS 16018
|
|
FIRE RATING
|
55B
|
55B
|
89B
|
|
OPERATING TEMPERATURE
|
-30*C TO +55*C
|
-30*C TO +55*C
|
-30*C TO +55*C
|
|
MIN.JET LENGTH(IN MTRS)
|
More than 2 Mtrs
|
More than 2 Mtrs
|
More than 2 Mtrs
|
|
DISCHARGE PERCENTAGE
|
95%
|
95%
|
95%
|
|
DISCHARGE TIME
|
More than 15 Sec
|
More than 15 Sec
|
More than 15 Sec
|
|
OPERATING VALVE
|
Wheel Type
|
Wheel Type
|
Wheel Type
|
|
TEST PRESSURE
|
25 Mpa
|
25 Mpa
|
25 Mpa
|
|
EXTINGUISHER MEDIA
|
Co2 Gas as per IS 15222
|
Co2 Gas as per IS 15222
|
Co2 Gas as per IS 15222
|
|
EXPELLANT
|
CO2
|
CO2
|
CO2
|
|
LENGTH OF HOSE PIPE
|
2 Mtrs.
|
2 Mtrs.
|
2 Mtrs.
|
